Twinwall Cladding Application UPVC Roof Tile Hollow PVC Thermo Roof Sheet Panels

  • HT860 HT910

  • Pingyun

Product Description

--Twinwall Cladding Application UPVC Roof Tile Hollow PVC Thermo Roof Sheet Panels--
    Thermo roof is an innovation ,it is successful roofing design ,the hollow structure has perfect performance in heat insulation.With only 30% cost os PU sandwich panel,ThermoRoof is the best alternatives than sandwich panels.ThermoRoof also coted ASA material on surface that can well resist UV to lasting its lifetime.
--Product  Description
--HT 885


   Style      Material      Width      Length   Thickness        Weight     Purlin Distance              Quantity
HT885  ASA-PVC  885mm Max11.8m     10mm  4.9kg/sqm        Max1.2m

--HT 910PY产品详细图-H910

   Style      Material      Width      Length   Thickness        Weight     Purlin Distance              Quantity
HT910  ASA-PVC 910mm Max11.8m     13mm  6.7kg/sqm        Max1.6m

--Product Details


Excellent features

--Excellent Features


· Long-lasting Color (at least 10 years)

· The product features ultra durability in natural environment.Even under tough conditions of exposure to UV,high temperature and freezing coldness,it still keeps stable color.

· Excllent Anti-corrosion performance

· Synthetic Resin Tile can resist longterm acid ,alkali and salt corrosion ,etc.Tests have proved that there would be no chemical reaction after soaking in salt and alikali and various acid under 60% .It is ideal for application in areas where acid rain is common.

· Good Waterproofing Performance

· Synthetic Resin Tile selects highly weater-resistant resin,which is dense and absorbing no water,with no pore penetration problem.The product is 45% wider than traditional tiles with less roof contact,so synthetic resin,s waterproof performance has greatly increased than traditional tiles.

· Strong Fire Resistance

· Belonging flame retardant material,with fire resistance ≥ B1 as tested by national authoritative departments according to GBB8624-2006 standard.

· Excellent Heat Insulating Property

· The heat conductivity coefficient is 0.325w/m.k,about 1/300 of clay tile ,1/50 of cement tile,and 1/2000 of thick color steel tile.Therefore without condidering ading heat-preserving layer ,the heat insulation and heat preservation of synthetic resin tile can still be optimized.

· Good sound insulation

· Tests have proved that synthetic resin tiles have excellent noise absorption function when suffered heavy rains and strong winds.

Application Scenarios

--Application Scenarios

green860   yellow860   860 (4)

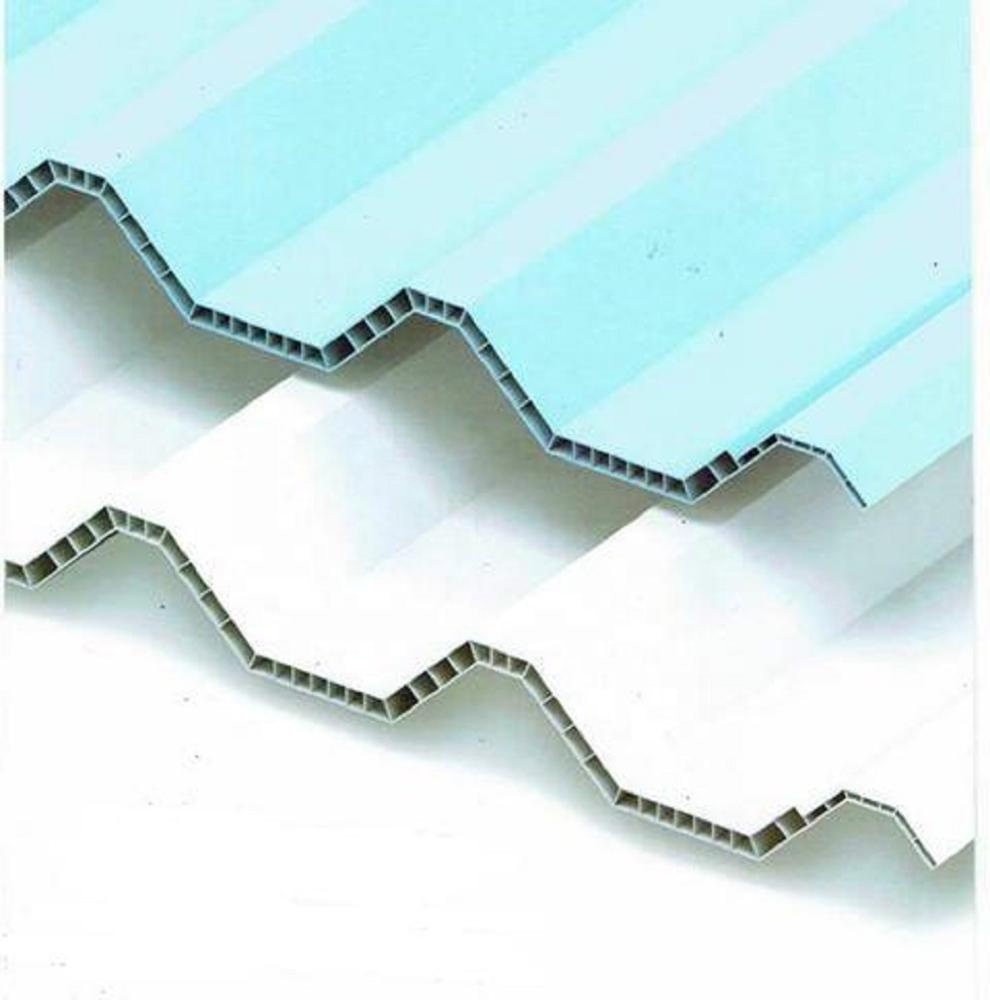

photobank (4)


Company Information

--Company Informationphotobank (1)photobank (3)


Q1. Can I have a sample?

A: Yes, free samples are available, we only need customer to afford the express freight.

Q2. What about the delivery time?

A: Mass production needs 10days within 10000 square meters.

Q3. Do you offer guarantee for the products?

A: Yes, we offer 10 years warranty to our products.

Q4. What colors can you produce?

A: We have many common colors like white, blue, brick red, green, grey, etc and also could customize special colors for you.

Q5. What length can you produce?

A: We could customize length for you. Max length of 5.8 meters for 20 feet container and 11.8 meters for 40 feet container.

Q6. What category do you have?

A: We mainly have Spanish and Roma styles for residential house, PVC trapezoidal and wave styles for factory and warehouse, PVC hollow roof&wall sheet for kinds of buildings, PVC translucent roof sheet for day lighting and so on.

Q7. What are the applications of PVC roof sheet ?

A: PVC roof sheet can be used in farm construction, paper mill construction, site construction, warehouse construction, factory construction, garage construction, winery, brick factory, chemical factory and other almost all kinds of environmental projects.
