T1130
Pingyun
--Product Description

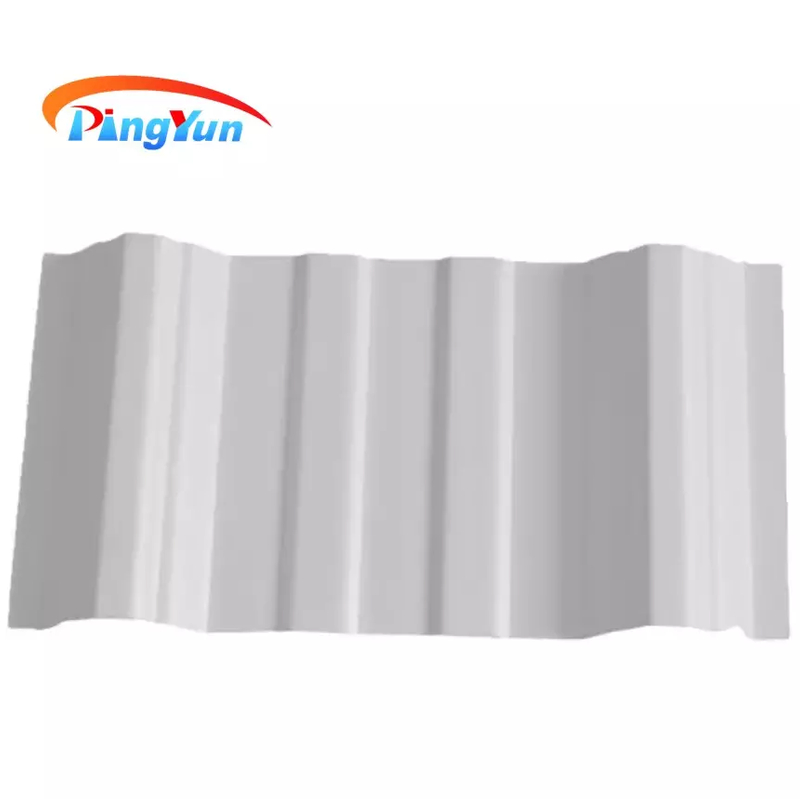

T1130
The PingYun T1130 stands as one of our best-selling products, enjoying immense popularity across the globe. Its versatile applications extend to various settings, including villas, residential homes, prefabricated houses, and pavilions, among others.
| Style | Material | Width | Length | Thickness | Weight | Quantity |
| T1130 | UPVC | 1130mm | Max 11.8m | 1.5mm | 2.8kg/sqm | 9500sqm/ 40HQ |
| T1130 | UPVC | 1130mm | Max 11.8m | 2.0mm | 3.8kg/sqm | 7200sqm/ 40HQ |
| T1130 | UPVC | 1130mm | Max 11.8m | 2.5mm | 4.8kg/sqm | 5500sqm/ 40HQ |
| T1130 | UPVC | 1130mm | Max 11.8m | 3.0mm | 5.8kg/sqm | 4300sqm/ 40HQ |
R101
The R101 design is a highly successful profile. At the same cost, its purlin spacing is 10% greater than that of the T1130. Additionally, the R101 boasts a coverage efficiency of 94.39%, which outperforms the T1130’s 92.93%. This translates to a minimum roof cost savings of approximately 1.46% for you.
| Style | Material | Width | Length | Thickness | Weight | Quantity |
| R101 | UPVC | 1070mm | Max 11.8m | 1.5mm | 2.8kg/sqm | 9500sqm/ 40HQ |
| R101 | UPVC | 1070mm | Max 11.8m | 2.0mm | 3.8kg/sqm | 7200sqm/ 40HQ |
| R101 | UPVC | 1070mm | Max 11.8m | 2.5mm | 4.8kg/sqm | 5500sqm/ 40HQ |
| R101 | UPVC | 1070mm | Max 11.8m | 3.0mm | 5.9kg/sqm | 4300sqm/ 40HQ |

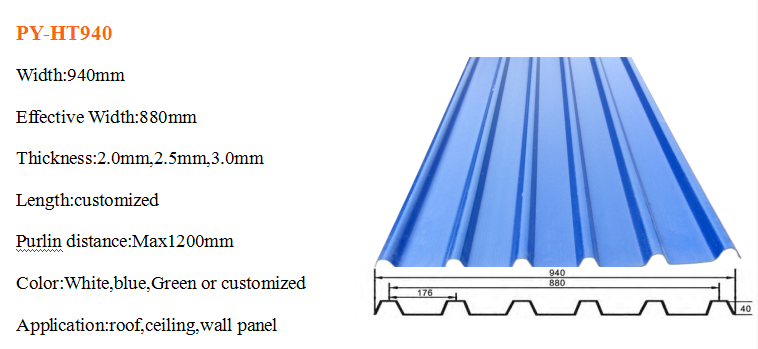

HT940
The HT940 represents our company’s inaugural product line, both designed and manufactured in-house. Since their launch onto the market, they have garnered high acclaim from a broad base of users and found extensive application across a diverse range of buildings.
| Style | Material | Width | Length | Thickness | Weight | Quantity |
| HT940 | UPVC | 940mm | Max 11.8m | 1.5mm | 2.8kg/sqm | 9500sqm/ 40HQ |
| HT940 | UPVC | 940mm | Max 11.8m | 2.0mm | 3.8kg/sqm | 7200sqm/ 40HQ |
| HT940 | UPVC | 940mm | Max 11.8m | 2.5mm | 4.8kg/sqm | 5500sqm/ 40HQ |
| HT940 | UPVC | 940mm | Max 11.8m | 3.0mm | 5.9kg/sqm | 4300sqm/ 40HQ |

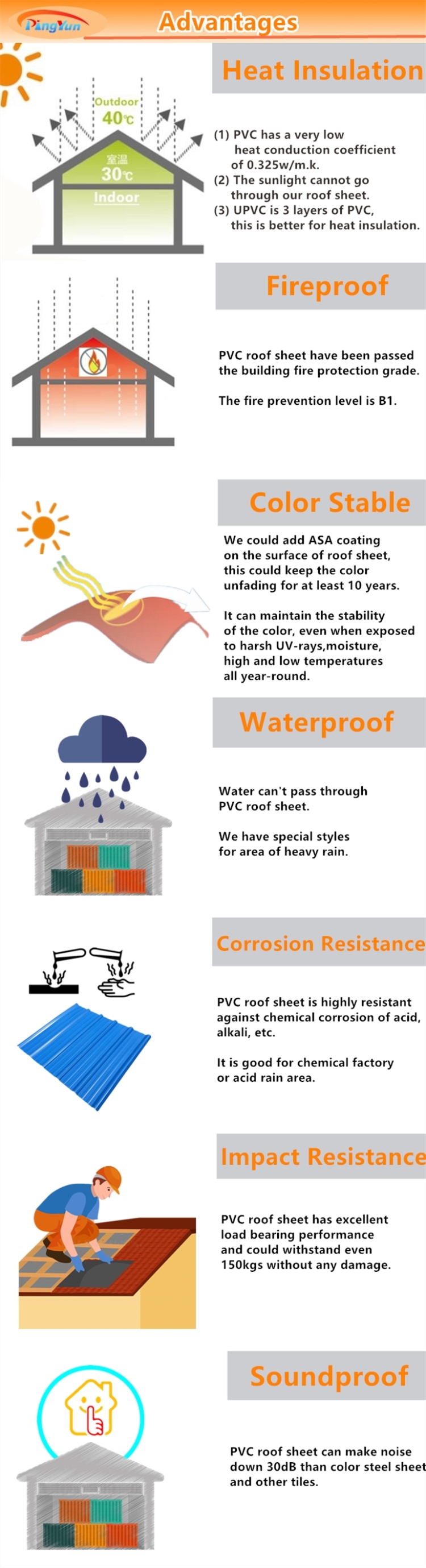

The 3-layer UPVC corrugated roofing sheet is constructed with a multi-layered structure:
Top Layer: UV-resistant coating with ASA (Acrylonitrile Styrene Acrylate) or acrylic additives to shield against solar radiation, preventing color fading and material degradation over decades.
Middle Layer: High-density UPVC core for structural integrity, providing impact resistance, load-bearing capacity, and flexibility to withstand wind uplift and seismic activity.
Bottom Layer: Reinforced with fiberglass or calcium carbonate for added strength and thermal stability, ensuring minimal expansion/contraction under temperature fluctuations.
This tri-layer design enhances water drainage efficiency by 30% compared to traditional flat tiles, while the corrugated profile increases surface area for optimal heat dissipation.
In Bogotá’s affordable housing project, 3-layer UPVC sheets reduced construction time by 40% and cut energy bills by 18%. Homeowners reported a 7°C drop in peak summer temperatures, enhancing comfort without air conditioning.
3-layer UPVC corrugated sheets represent a paradigm shift in roofing technology, offering a trifecta of sustainability, performance, and affordability. As global demand for green buildings surges, these tiles are poised to dominate markets in Asia, Latin America, and Africa, where rapid urbanization meets climate resilience goals. For architects, contractors, and homeo
